Types of Septic Systems: Every Residential Type, What Each Costs, and How Long It Lasts
There are 10 recognized types of septic systems — and the one your property gets is decided almost entirely by your soil, water table, and lot size, not by preference. Here's every type, what it costs, how long it lasts, and the rules that pick it.
distinct residential septic system types recognized by the U.S. EPA — one conventional design and nine alternatives for difficult sites.
Key takeaways
- ▸The EPA recognizes 10 residential septic types; the conventional tank-and-drainfield is the baseline, the other nine are alternatives for tough sites.
- ▸Your soil decides, not your budget: New York requires a perc rate of 1–60 min/inch, 4+ feet of usable soil, and a water table 2+ feet below the trench for a conventional system.
- ▸Cost climbs with the site, not the house: ~$3,500–$8,500 conventional vs $10,000–$25,000 for mound, ATU, or sand-filter systems (2026 HomeGuide/Angi data).
- ▸A concrete tank lasts 40–50+ years, but the drainfield — 20–30 years — is the part that actually fails, and once it fails it can't be repaired.
- ▸Systems with pumps (ATU, mound, drip) need yearly service; additives and enzymes don't help and can damage the drainfield.
The 10 types of septic systems, explained
Each type exists for a specific site condition. The tag shows how often it shows up around the Capital Region.
Septic tank
The buried, watertight tank that receives raw wastewater and settles out solids — the first-stage component of nearly every system.
When it's used: Foundation component of every system

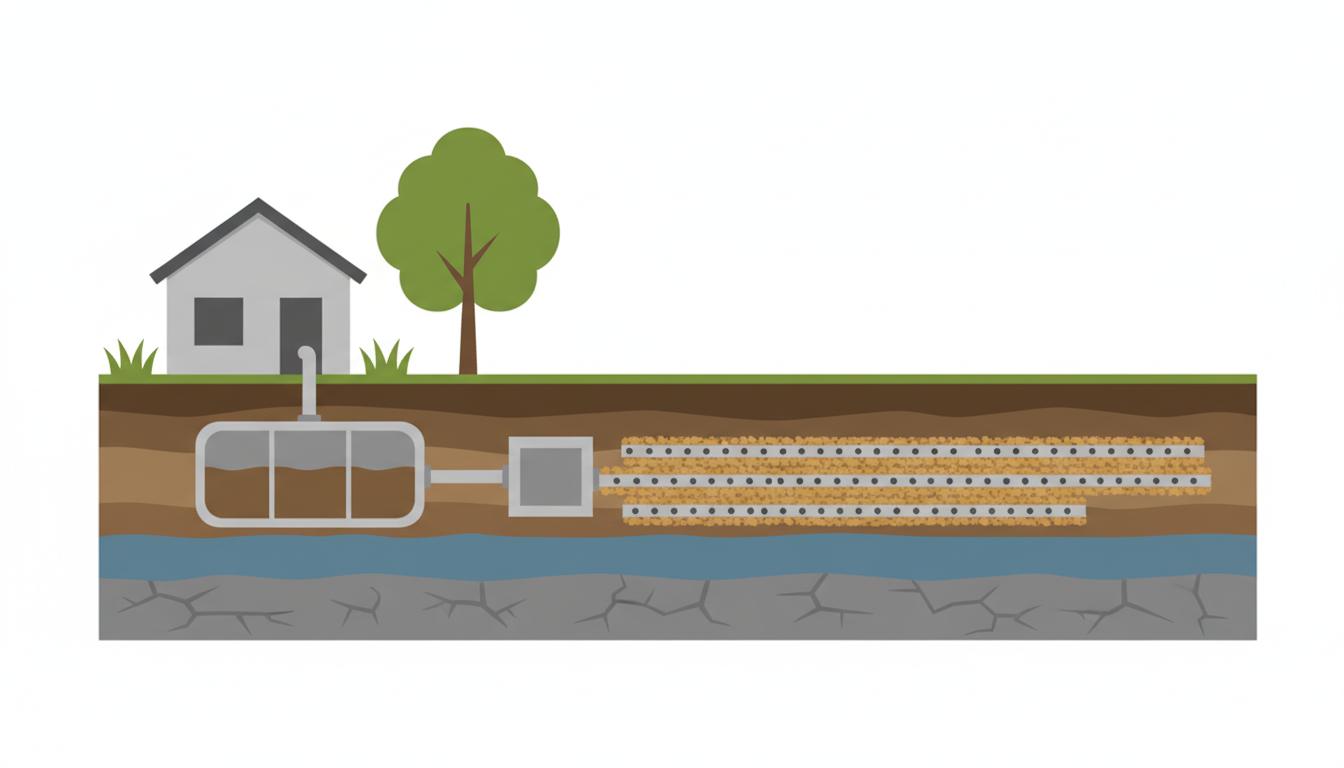

Conventional (gravity) system
Used near AlbanyA septic tank plus a trench or bed drainfield; treated effluent flows into the soil by gravity.
When it's used: Adequate soil depth, drainage, and space
Chamber system
Used near AlbanyA gravelless drainfield of connected open-bottom plastic chambers instead of gravel trenches.
When it's used: Higher water tables; variable flow; where gravel is scarce
Drip distribution
Occasional hereEffluent dispersed through shallow drip tubing in the top 6–12 inches of soil — no large mound needed.
When it's used: Shallow soil; needs a dose tank + electricity + more upkeep
Aerobic treatment unit (ATU)
Used near AlbanyInjects oxygen into the treatment tank to break waste down faster, producing higher-quality effluent.
When it's used: Small lots, poor soil, high water table, or near sensitive water
Mound system
Used near AlbanyAn engineered sand mound built above grade with a drainfield inside it; effluent is pumped up into it.
When it's used: Shallow soil, high groundwater, or shallow bedrock
Recirculating sand filter
Occasional hereEffluent is pumped through a lined sand-filled box for extra treatment before it reaches the soil.
When it's used: High water tables or sites close to water bodies
Evapotranspiration (ET)
Not used hereA sealed, lined bed where effluent evaporates into the air instead of soaking into soil.
When it's used: Arid climates only — fails with too much rain or snow
Constructed wetland
RareMimics a natural wetland; microbes, plants, and media treat the wastewater in a saturated cell.
When it's used: Niche sites suited to a saturated, planted cell
Cluster / community system
RareA shared decentralized system under common ownership serving two or more homes.
When it's used: Rural subdivisions and multi-home developments
Source: U.S. EPA, Types of Septic Systems.
Which types you'll actually see near Albany
Not every EPA type is a real option in the Capital Region. Our clay-heavy glacial soils and high spring water table push a lot of properties off the conventional path:
- Common here: conventional gravity systems (where the soil cooperates), plus mound, aerobic (ATU), and chamber systems where it doesn't.
- Occasional: drip distribution and recirculating sand filters on specific difficult sites.
- Never here: evapotranspiration systems — they only work in arid climates and fail with our rain and snow. If someone proposes one in upstate New York, get a second opinion.
Why the shift toward engineered systems? It comes straight from the ground — see why lots here get forced into a mound or ATU.
What each septic system type costs
National installed-cost ranges. Bars scaled to each type's high end. Localize with the Albany cost guide.
Source: 2026 cost data from HomeGuide and Angi (secondary aggregators; ranges vary by region and site). National average full system ≈ $8,000.
How long each part lasts
Split by component, the conflicting "how long does a septic system last?" answers finally make sense.
Figures are industry consensus (corroborated across multiple sources incl. InspectAPedia/Penn State Extension); lifespan depends heavily on maintenance, soil, and tank material. The drainfield is the component that fails first — and per University of Maryland Extension, once it fails it generally cannot be repaired; a new field must be built.
The part no one explains
What decides which type your lot gets
A perc test doesn't pass or fail — it produces a rate that feeds New York's design formula (NYS DOH Appendix 75-A). These are the thresholds that route your property to one system or another. They're state minimums; your county may require more.
Usable percolation rate
1–60 minutes per inch. Faster or slower than that and a conventional system is not allowed — you're pushed to an engineered design.
Depth to bedrock / hardpan
At least 4 feet of usable soil above rock or an impervious layer (state minimum; some counties require more).
Seasonal high water table
Groundwater must sit at least 2 feet below the trench bottom (state minimum). High water table is the #1 reason Capital Region lots get mounds or ATUs.
Slope
Slopes over 15% are unacceptable; so are sites below the 10-year flood level.
Household size (design flow)
110 gallons/day per bedroom (modern fixtures) sets tank and field size.
Tank size by bedrooms
1,000 gal for 1–3 bedrooms, 1,250 for 4, 1,500 for 5 — a garbage disposal counts as one extra bedroom.
When a mound is required
Permeable but too-shallow soil: high groundwater within ~1 ft of surface, bedrock within 2 ft, perc faster than 120 min/inch, slope ≤12%.
Source: New York State Dept. of Health, Appendix 75-A, Residential Onsite Wastewater Treatment Systems (state-minimum design standards).
Maintenance by type
Sources: U.S. EPA, How to Care for Your Septic System; University of Maryland Extension, A Guide to Septic Systems and Maintenance (FS-1105).
Septic system type questions, answered
How many types of septic systems are there? +
The EPA recognizes 10 residential types: the conventional septic-tank-and-drainfield plus nine alternatives — chamber, drip distribution, aerobic treatment unit (ATU), mound, recirculating sand filter, evapotranspiration, constructed wetland, and cluster/community systems. The conventional gravity system is the default; the others exist for sites where soil, water table, or space rule it out.
What decides which septic system I can install? +
Mostly your soil, not your preference. New York's design code requires a percolation rate between 1 and 60 minutes per inch, at least 4 feet of usable soil above bedrock or seasonal high groundwater, and a water table at least 2 feet below the trench. Fail any of those and you're pushed into an engineered alternative like a mound or ATU.
Why am I being told I need a mound system? +
Under New York's rules a mound is required when soil is permeable but too shallow — high groundwater within about a foot of the surface, bedrock within two feet, or a fast perc rate on a gentle slope. The engineered sand adds the treatment depth the natural soil lacks, which is why it costs far more (nationally $10,000–$20,000+, per 2026 cost data).
How much does a septic system cost by type? +
According to 2026 HomeGuide and Angi data, a conventional gravity system runs about $3,500–$8,500 installed, while engineered systems cost more: mound $10,000–$20,000, aerobic (ATU) $10,000–$20,000, drip $8,000–$18,000, and sand filter $12,000–$25,000. Soil quality is the single biggest cost driver — poor soil forces a pricier alternative system.
How long does each part of a septic system last? +
By industry consensus, a concrete tank commonly lasts 40–50+ years and a steel tank only 15–20. The drainfield — the part that usually fails first — typically lasts 20–30 years, and once it fails it generally can't be repaired; a new field must be built. Whole-system average life is 20–30 years, driven mostly by maintenance.
Which septic system types actually get installed near Albany? +
Around the Capital Region you'll mostly see conventional gravity systems where the soil allows, and mound, aerobic (ATU), and chamber systems where the clay soils and high spring water table don't. Evapotranspiration systems — an EPA-listed type — are arid-climate only and are never used here; they fail in wet Northeast winters.
How often does a septic system need maintenance? +
The EPA recommends inspecting a conventional system every 3 years and pumping the tank every 3–5 years. Alternative systems with pumps or mechanical parts — ATU, mound, drip, sand filter — need annual inspection and a service contract. Skipping maintenance is what shortens the drainfield's life the most.
Do septic additives or enzymes help? +
No. University of Maryland Extension states additives do not improve performance and can actually damage the system by breaking up the sludge and scum layers, flushing solids into the drainfield and clogging it. Normal household use already produces the bacteria the tank needs — pump on schedule instead.
Sources & method
The type list, site-condition triggers, New York design thresholds, and maintenance cadence are drawn from primary government and university sources. Cost and lifespan ranges are national industry figures from the secondary sources named, attributed in place and never presented as our own measurements.
- ▸ U.S. EPA — Types of Septic Systems & How to Care for Your Septic System
- ▸ NYS Dept. of Health — Appendix 75-A design standards
- ▸ University of Maryland Extension — A Guide to Septic Systems and Maintenance (FS-1105)
- ▸ Cost ranges: 2026 HomeGuide & Angi data. Lifespan ranges: industry consensus (incl. InspectAPedia / Penn State Extension).
New York figures are state minimums under Appendix 75-A; Albany, Rensselaer, Saratoga, and Schenectady county health departments may set stricter requirements for your specific property.
